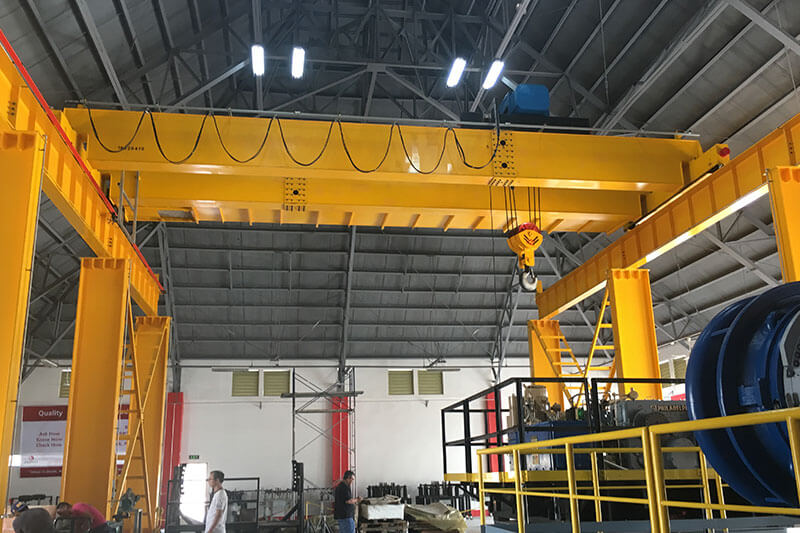

LH double girder electric hoist crane
Electric Hoist double girder overhead crane is an overhead crane with the electric hoist as the lifting mechanism, with the lifting capacity 5 ton to 63 ton, used for general material handling and lifting. The working class of the electric hoist overhead is A3 to A5.
Components of Electric Hoist double girder overhead cane

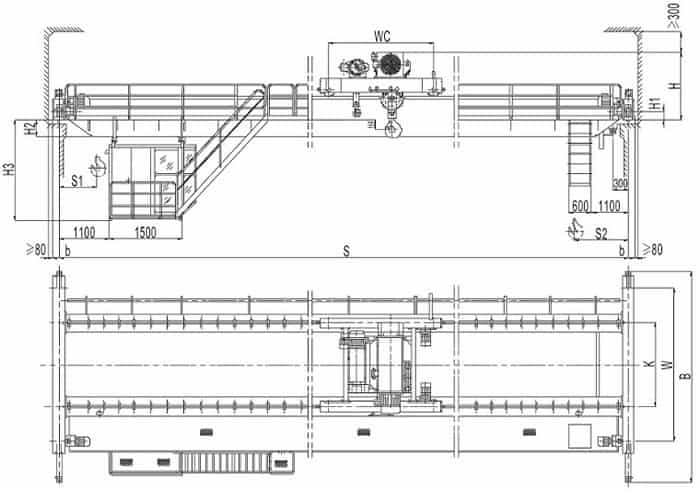

The Electric Hoist Double girder Overhead crane is mainly consisted of the following crane components, such as, bridge frame, trolley, crane travelling mechanism, and electrical control system.
Application of electric hoist double girder overhead crane
As one kind of common material handling equipment, the electric hoist double girder overhead crane is widely used in machinery processing workshop, warehouses, yard, plants, and other places, etc. It also can be used as an alternative for double girder overhead crane, used in production workshop of textile industry and food industry, etc.
Advantages of Electric Hoist Double girder Overhead crane
- Compact structure with good rigidity
- Easy operation with low noise
- Low building height clearance
- Light weight and small wheel pressure
- Safe and reliable performance
- Attractive appearance
Features of electric hoist double girder overhead crane
- Double girder structure provides sufficient strength, rigidity, and stability to the crane bridge.
- Rail-in-middle box girder design fully meets strength, rigidity, and stability requirements.
- End beams feature a simple structure and are easily installed with the main beam using high-strength bolts.
- High-quality CD or MD wire rope electric hoist is used as the lifting mechanism.
- Soft-starting motors with low current consumption are used with ground control.
- Dual-motor independent drive device reduces rail wear and minimizes wheel climb-off track risk.
- Motors are directly controlled by contactors for single-speed, double-speed, and reverse operations.
- Frequency converters adjust motor voltage and frequency for precise speed control.

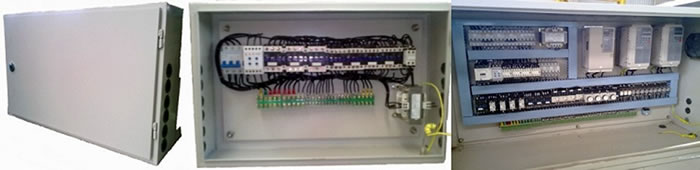

- Multiple safety protection systems are provided, including short-circuit, no-voltage, emergency stop, overload limit, travel limit, zero and chain protection, and grounding protection.
High safety and quality overhead crane for sale from Chinese crane manufacture with good price. Contact us for more information on electric hoist double girder overhead.
