Single Girder gantry crane
single girder gantry crane is a type of light small gantry crane with a single girder and rail travelling. The single girder gantry crane is designed for generally material handling, with the lifting capacity around 1 to 20 tons, and working class A3, or A4.
Components of Single Girder Gantry Crane

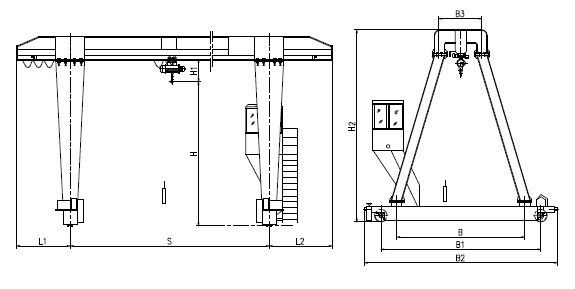

Single girder gantry crane is mainly consisted of gantry frame, i.e. main single girder, legs, bottom end beams, lifting mechanism, travelling mechanism, and electrical control. It can be designed with two hanging arms, one hanging arm or no-hanging arm according to client's lifting requirements and application environment.
Classification of Single Girder Gantry Crane
Single girder gantry crane can be divided into box type and truss type.

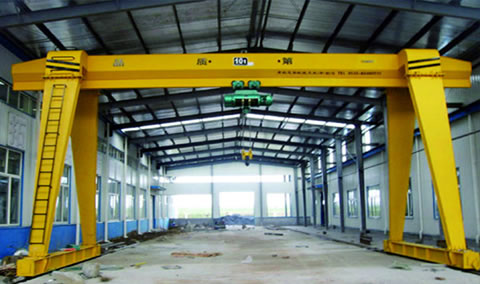

Box type
The box type single girder gantry crane is a medium sized crane, travelling in track , usually equipped with standard CD MD electric hoist as the lifting mechanism, and the electric hoist traversing along the lower flange of the I- steel of the main girder, which is made of high quality steel plates, such as, C-steel and I-steel.

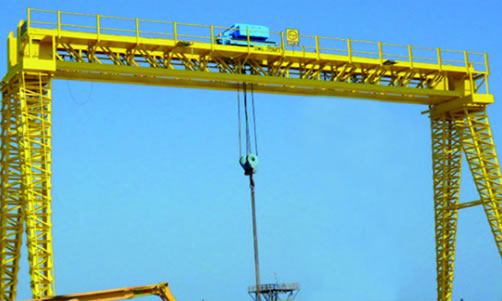

Truss type
The truss single girder gantry crane differentiates itself with the box type crane in terms of structure construction. The former is made of steel bars and the latter is made of steel plates. The truss gantry crane is much lighter than that of the box type gantry crane and it has high wind resistance.
Application of Single Girder Gantry Crane
Single girder gantry crane is regular crane, designed for general material handling , which is frequently used at open ground, warehouse, ports, granite industry, cement pipe industry, open yard, container depots and shipyards, etc. However, it is forbidden to handle melt metal, inflammable. Or explosive objects.
Advantages of Single Girder Gantry Crane
- Simple structure with easy installation.
- Good usability with high operating efficiency.
- Low maintenance requirements and easy servicing.
- Standardized, generalized, and serialized components.
Safety Feature
- Overload protection devices are equipped to provide sharp alarm warnings during overload conditions.
- Limit switches are used to prevent over-lifting or over-lowering of the crane hook.
- High-quality polyurethane buffers are used to ensure long service life.
- Cabin control and remote control options are available to enhance operator safety.
- Low-voltage protection is provided to safeguard against unstable power supply.
- Emergency stop buttons are installed to immediately stop the equipment during emergencies.
- Current overload protection systems and additional safety protections are included.
Gantry crane with single girder for 1 to 20 tons material handling at your selections. Single girder gantry crane direct sale form gantry crane manufacturer with good price now. Contact us for more informaiton on the single girder gantry crane now!
