Adjustable gantry crane for sale
DQCRANES adjustable gantry crane for sale with good price. Designed portable, our adjustable gantry cranes offer adjustable height and span, with capacity 1 ton up to 10 tons. The adjustable gantry crane is your affordable material handling solution, cost-saving and efficient. The 3 way adjustable gantry crane is your most convenient gantry crane.

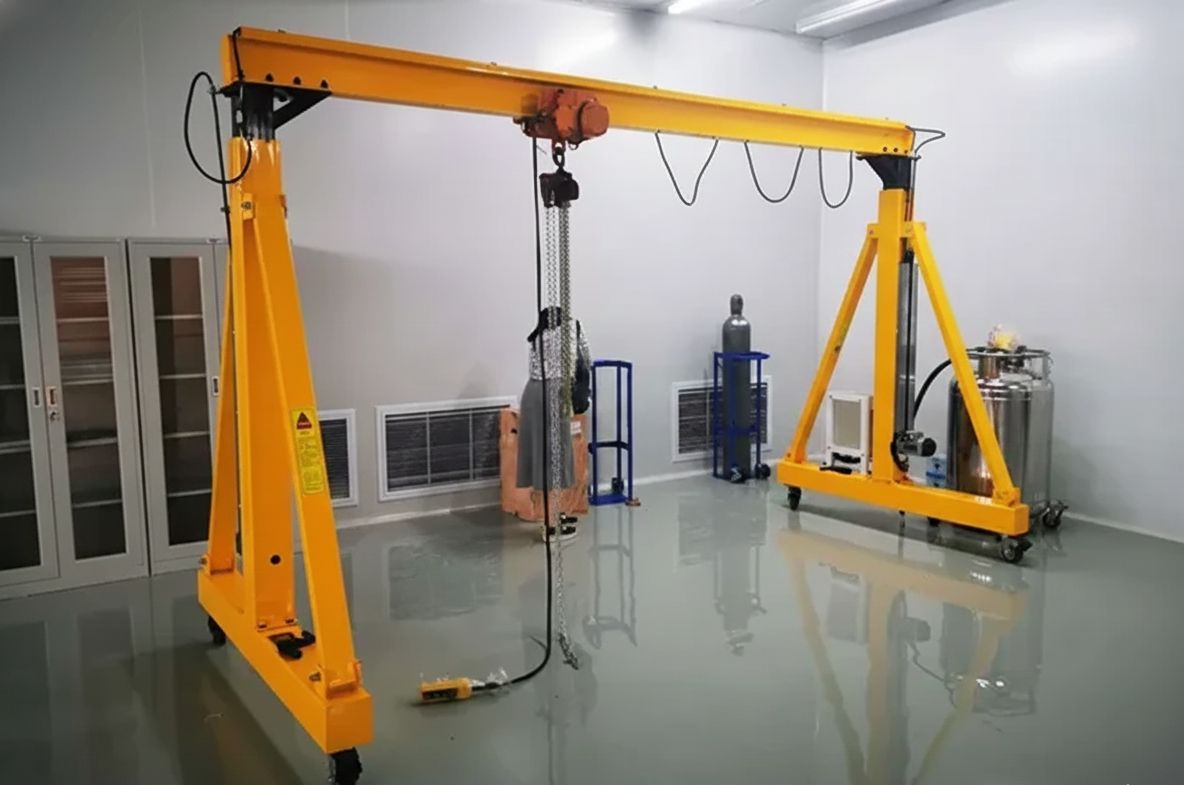

Steel Adjustable Gantry Crane
The adjustable gantry crane is a very affordable way to handle lifting needs. The steel adjustable gantry crane can lift loads up to 10 tons and have a maximum available span of 11-1/2 feet. The adjustable gantry crane has heights up to 14 feet providing plenty of space for loads of varying sizes and configurations
Features of the Adjustable Gantry Crane
- Made from heavy-duty steel square tubing.
- Adjustable height up to 14 feet.
- Maximized clear span design free of brace legs.
- Ideal for light to moderate load handling.
- Very economical solution for lifting and transferring loads.
- Mold-on polyurethane swivel casters provide smooth and stable movement.
10 Ton Steel Adjustable Gantry Crane
Build flexibility into your operations with these adjustable height steel gantry cranes with capacities up to 10 tons and spans up to 40 feet. The adjustable gantry crane is able to lift and transfer machinery components, engines and large fabrication pieces all with one crane.
Features of The Adjustable Gantry Crane
- Spring-loaded steel locking pins allow quick and easy height adjustments.
- Constructed from heavy-gauge rectangular steel tubing.
- Lower cost and lighter weight design for more cost-effective load transportation.
- Brace-leg-free design provides greater clear span distance.
- Resilient mold-on polyurethane wheels ensure smooth movement.
- Excellent portability due to lightweight construction.
- Load capacities available up to 10 tons.
- All wheels are equipped with swivel locks to secure the crane during operations.

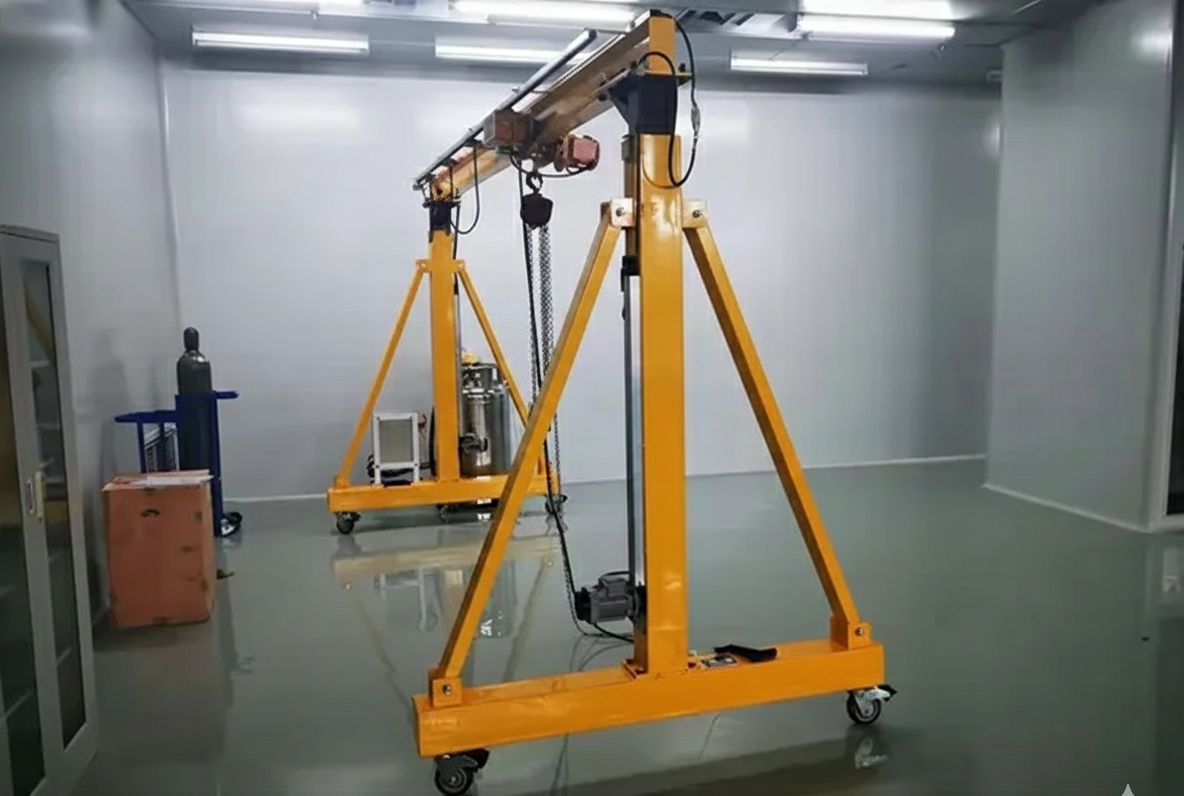

3-way Adjustable Gantry Crane
The 3 way adjustable gantry crane is extremely flexible in configuration and use, which has 3-way adjustment, offers up to 10 tons of capacity and a truly stable A-frame design. The adjustable gantry crane can be assembled in either full beam or cantilever configuration. The adjustable gantry crane has adjustable height, span and tread width.
Advantages of 3 Way Adjustable Gantry Crane
- Three-way adjustable gantry cranes are capable of multiple functions because of their stability and adjustability. Due to the stability and adjustability, the three way adjustable gantry cranes are multifunctional.
- With the common design of the most gantry cranes, the three-way adjustable gantry crane has a portable A-frame gantry design, which enable the gantry capable of reaching all corners of your workshop in your plant or factory to handle materials.
- The adjustable gantry cranes can be disassembled easily and quickly for transport by trucks, making them useful in a wide applications. But, the greatest feature of a three-way adjustable gantry crane is the adjustability of the crane span, height, and tread.
- Due to the high flexibility and control, three way adjustable gantry crane can be used on uneven floors, aisles, and under other overhead obstacles.
- Usually, the three-way adjustable gantries are made of all steel or steel and other alloys. High stability is another features of three-way adjustable gantry crane.
- Due to the special design, the portable gantry crane provide high stability because the I-beam is free to pivot as it self-centers over the load. What’s more, the A-frame gantry design helps to provide high stab.
How to Adjust the Portable Gantry Cranes

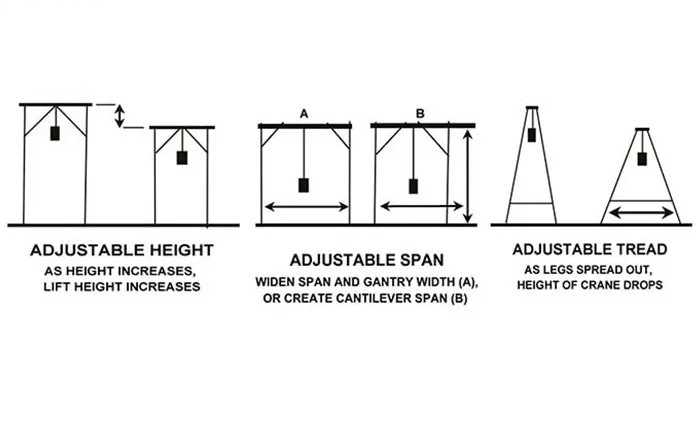

Adjustable gantry cranes can be adjusted in three ways: height, span and tread. Most adjustable cranes allow height adjustments. Some cranes allow height and span adjustment, while a select group allow adjustments in all three areas.
- Height Adjustment - this consists of adjustable leg support frames. Usually spring lock steel pins are removed, the leg frame height raised or lowered and then the steel pins reinserted at the new height. This is especially useful when there are overhead obstructions that must be cleared during transit
- Span Adjustment - this is the ability to change the clear span distance on the beam. There may be times when the traffic access in a facility is narrow, but overhead clearances are wide open. In this case, you would move the leg frames closer together on the I-beam, making the clear span narrower in order to move through the facility.
- Tread Adjustment - at times both traffic access and overhead space is narrow. In this case, you need to make the tread width narrower. Tread width is the space between wheels on one leg frame. This width determines how much space is needed to move the gantry crane lengthwise through a facility while maintaining the full span length.
How To Buy An Adjustable Gantry Crane
Please check the following information to figure out which gantry crane best fits your needs:
- How heavy a load do you want to lift?
- How high do you want to lift the load?
- How wide does the crane need to be to span the load?
- Are there any special location requirements?
- Are there any special environmental conditions to consider?
- Are there any specific power supply requirements?
Welcome to contact us if you have questions or would like additional information about any of our cranes and services. We would be more than happy to assist you!
